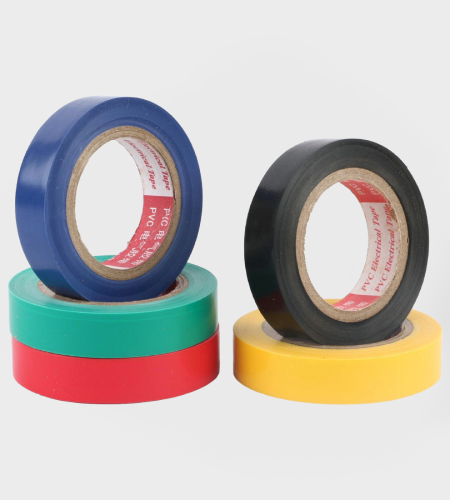

Electrical Insulation Tape
SPECIAL ASPECTS
- Uniform thickness and width
- Controlled primer coating
- Proprietary formulation of rubber-based adhesive
- The non-migratory, non-oozing adhesive that prevents telescoping
- High stability and ageing characteristics
- Water and weather resistant, also resistant to acids, alkalis, oils, greases and gasoline
- Withstand an AC breakdown voltage of above 6500V
- Excellent moisture and corrosion resistance
- Withstand short circuits/leakage currents
- Superior mechanical support at high operating temperature (up to 100°C)
| Particulars | Specified Values |
|---|---|
| Nominal Thickness | 0.125 + 0.025 mm |
| Tensile Strength | 150 N |
| Adhesion to steel | 1.6 N/10mm width (Min) |
| Adhesion to grip | 1.3 N/10mm width (Min) |
| Electric Strength at RT | 40kV/mm |
| Electric Strength after 24hrs humidification at 27°C | 35kV/mm |
| Insulation Resistance | 1 X 105 M-ohm |
